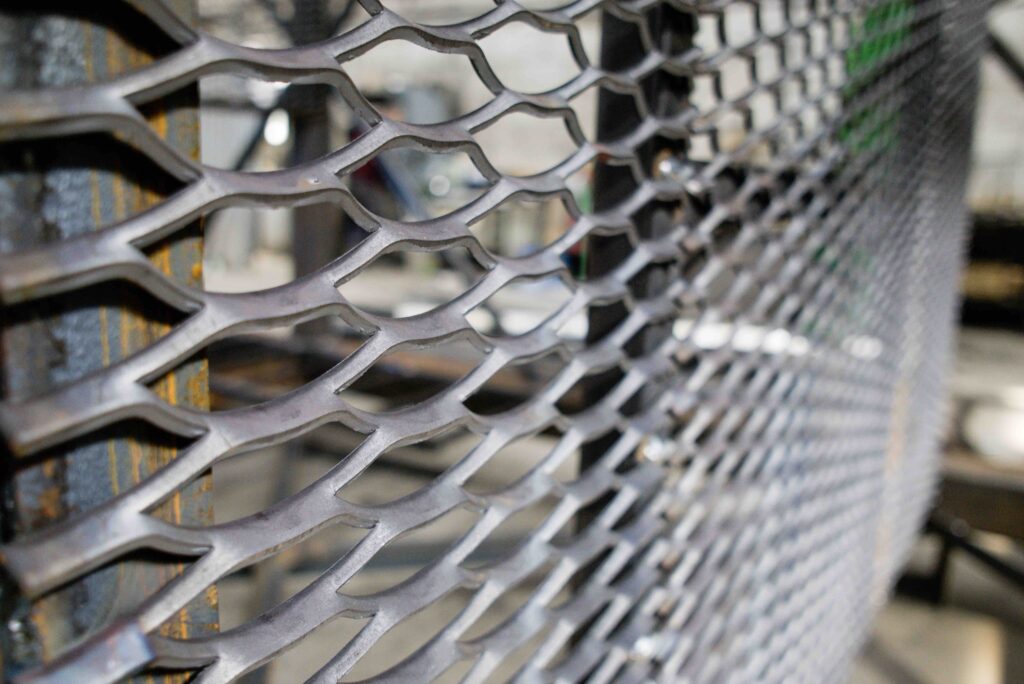

Expanded metal is a versatile sheet material created by cutting and stretching a solid metal sheet into a mesh-like pattern. Unlike welded or woven mesh, expanded metal is produced from a single piece of metal, which means there are no joints, welds, or weak intersections. This structure makes expanded metal strong, lightweight, and highly efficient in terms of material usage. It is widely used in construction, filtration, fencing, walkways, and industrial applications due to its durability and open-area design.
Raw material selection
The manufacturing process begins with selecting the right raw material. Typically, sheets of steel, stainless steel, aluminum, or other metals are used depending on the intended application of the final product. The choice of material is important because it determines the strength, corrosion resistance, weight, and cost of the final expanded metal. For example, stainless steel is often used in environments where corrosion resistance is critical, while aluminum is preferred for lightweight applications. The metal sheets are carefully inspected for uniform thickness and surface quality before moving to the next stage.
Sheet preparation and feeding
Once the raw material is selected, the metal sheets are prepared for processing. They are cut into standard sizes and fed into an expansion machine. This machine is specially designed to handle continuous sheets of metal. Proper alignment is crucial at this stage to ensure that the pattern formed later is consistent and uniform. Any irregularities in feeding can affect the quality of the final expanded metal, so precision is maintained throughout the setup process.
Slitting process
The slitting process is one of the most important steps in manufacturing expanded metal. In this stage, a specialized machine equipped with sharp, synchronized blades makes precise cuts into the metal sheet. These cuts are not complete separations; instead, they are strategically placed slits arranged in a staggered pattern. The pattern depends on the desired shape of the mesh openings, which can be diamond, square, or other custom designs. This slitting creates the foundation of the expanded structure without removing any material, which is a key advantage of expanded metal production.
Expansion process
After slitting, the sheet moves into the expansion phase. This is where the transformation into expanded metal truly happens. The slitted metal is pulled or stretched in a controlled manner by the machine. As the sheet expands, the cuts open up into uniform mesh openings, forming a diamond-shaped or hexagonal pattern depending on the tooling used. Because the metal is stretched rather than cut away, the process increases the sheet’s size while maintaining its original weight. This also enhances structural strength due to the cold-working of the metal, which improves rigidity and load-bearing capacity.
Flattening and leveling
Once the expansion is complete, the metal sheet may have a raised or uneven surface due to the stretching process. In many applications, a flattened surface is required for safety, appearance, or functional reasons. To achieve this, the expanded metal passes through flattening rollers. These rollers compress the mesh and create a smooth, level surface while preserving the integrity of the openings. Flattened expanded metal is commonly used in flooring, grating, and architectural applications where a flat walking or working surface is needed.
Cutting and sizing
After flattening, the expanded metal is cut into required dimensions. Depending on customer specifications, it may be cut into sheets, rolls, or custom shapes. Precision cutting ensures that the edges are clean and the final product fits its intended application without additional modification. This step also includes trimming any irregular edges that may have formed during expansion or flattening.
Finishing treatments
Finishing plays a crucial role in enhancing the durability and appearance of expanded metal. Depending on the environment in which it will be used, different surface treatments are applied. Common finishing processes include galvanizing, powder coating, painting, or anodizing. Galvanizing adds a protective zinc layer to prevent rust, while powder coating provides both color and corrosion resistance. In industrial environments, stainless steel expanded metal may be polished or passivated to improve corrosion resistance and cleanliness. These treatments extend the lifespan of the product and improve its visual appeal.
Quality inspection
Before the expanded metal is packaged and shipped, it undergoes strict quality control checks. Inspectors examine the uniformity of the mesh pattern, thickness consistency, surface finish, and overall structural integrity. Measurements are taken to ensure that the strand width, opening size, and sheet dimensions meet the required standards. Any defects such as uneven expansion, cracks, or surface imperfections are identified and corrected or rejected. This ensures that only high-quality expanded metal reaches the end user.
Packaging and distribution
Once approved, the finished expanded metal is carefully packaged to prevent damage during transportation. Sheets are stacked with protective layers in between, or rolls are securely wrapped. Proper labeling includes material type, dimensions, and specifications to help customers identify the correct product. The packaged expanded metal is then distributed to construction sites, industrial facilities, manufacturers, and retailers based on demand.
Applications and importance of manufacturing precision
The precise manufacturing of expanded metal directly impacts its performance in real-world applications. In construction, it is used for facades, ceilings, and security fencing. In industrial settings, it serves as machine guards, filters, and platforms. In transportation, it is used for grilles and protective covers. The strength, flexibility, and lightweight nature of expanded metal come directly from the controlled manufacturing process, especially the slitting and expansion stages.
Because no material is wasted during production, expanded metal is also considered cost-efficient and environmentally friendly. The absence of welding or weaving means fewer weak points, resulting in a more durable and reliable product. Every step in the manufacturing process—from raw material selection to final finishing—plays a critical role in ensuring that the expanded metal meets functional and structural requirements.
Conclusion
The manufacturing of expanded metal is a highly precise and efficient process that transforms a simple metal sheet into a strong, lightweight, and versatile material. Through carefully controlled steps such as slitting, expansion, flattening, and finishing, manufacturers create a product that is both functional and durable. Understanding how expanded metal is made highlights why it is so widely used across industries and why its production method is both innovative and resource-efficient.
